This field lab will explore the viability of different cover crops and cultivation timing on wire worm population and the effect on following potato crops.
Concerns around wireworm damage and its effect on growers’ ability to grow crops has intensified in recent years, with a huge increase in the pest pressure seen across the country.
Processors are pushing towards more regenerative techniques in potato production. However, regenerative practices such as such as leaving stubble and providing green cover provide a food source for wireworm which leads to potato damage, yield losses and downgrading for a lower return. This can cause significant knock on effects for growers and packers in the following seasons and damage growers economically. Huge crop losses mean that this is not sustainable for growers or packers and therefore alternative non-chemical control methods need to be explored.
In this field lab, we are exploring control methods by harnessing the chemical properties of mustards and buckwheat in rotations to ward off the pest. The field lab group consists of potato growers, agronomists and researchers that will undertake core sampling to identify how buckwheat and biofumingant crops affect juvenile populations, compared with stubble. It is known that some species of cover crops have allelopathic effect on wireworm particularly in the juvenile stage.
It has been found that no-till systems increase the pressure of wireworm by providing a feed source (e.g. stubble, cover crops) during times where otherwise land would be fallow. Because of this, some farmers looking increase the use of regenerative techniques are cautious to do so, and organic farmers are left to rely on tillage for some control of the pest.
Whilst ploughing can reduce wireworm damage, farmers have found that it does not achieve sufficient control of the pest. Additionally, green manures and cover crops increase wireworm risk as they keep soils warmer and provide a food source.
However, some cover crops such as buckwheat are known to have allelopathic effects after incorporation into soils, meaning that during decomposition of the plant, chemicals are released which suppress weeds, pests and pathogens. Biofumigants such as hot mustard also contain naturally occurring compounds that may be toxic to soil pests and pathogens. It is known that wireworm are most vulnerable to these effects at the juvenile stage, so the particular focus of this field lab will be to assess the degree that population levels of juveniles are reduced.
Replicated trials will take place at Nick Taylor's farm in Shropshire. The site was chosen based on severity of damage and wet enough land to undertake core sampling. The site has had hundreds of adult beetle caught, and pre-sampling has taken place to ensure that wireworm are present within the plots.
Each treatment is 0.33ha, and there will be 5 replications of each treatment. There are 6 treatments:
Nick Taylor used a 6 metre drill.
Core sampling will be done by agronomist Richard Griffith,
To check for click beetles, Richard will lay traps and check once a week for 3 to 4 weeks.
10 core samples will be taken per plot to make up composite sample for analysis. A 4 inch corer will be used. Samples will be sent to ADAS undertake wireworm identification. Data will be analysed using ANOVA and post-hoc multiple range tests, possibly some regression analysis.
Support with trial design and analysis will be provided by Dr Ben Clunie, entomologist at HAU with a focus on IPM. Independent agronomist Martyn Cox is an expert on wireworm in the UK and a key partner in this project. Seeds are being provided by Hutchinsons Ltd.
The group held a webinar looking at the issue of wireworm and the learnings from the trial. It can be viewed here.
The final report has been published and can be found in the results and reports section of the field lab page (click on brown banner).
This trial suffered due to the extremely wet autumn and winter of 2023-24 and as a result of this, we were unable to carry out all the work at the intended timings or in the case of the biofumigation incorporation, not at all.
The work on the trial was delayed by the wet harvest of the previous years’ oats and this will have allowed juveniles to feed longer than usual thus reducing their susceptibility to starvation (Sufyan 2012). This ensured that all treatments in the trial were ultimately drilled too late in the year. As a result, the mustard was never likely to reach optimal growth stages for incorporation, further limited by overly wet soil conditions. The wet conditions may also have reduced the effects of cultivations on weeds and volunteers and mortality of juveniles.
Although there were few significant effects in this trial, most treatments did behave as expected except for the flame weeder. This raised questions about wireworm preferences for an area ostensibly free of any viable food source, hinting towards a possibility of a preferably warmer environment due to bare soil, or the presence of enough organic matter or previous plant material to reduce need for migration. Anecdotally, larvae were observed feeding on stubble during informal sampling prior to soil-coring, further cementing these organisms’ ability to sustain themselves on minimal or nutritionally poor food sources.
Arable farming is rapidly adopting the use of cover cropping and reduced or zero tillage, but we have not yet managed to predict the longer-term effects of these changes although they are widely considered to increase click beetle populations. To enable these studies, we must develop improved techniques for detecting small larvae in soil from a known area of soil. While core sampling remains the accepted standard for determining population density of small larvae, this study has highlighted its limitations - particularly in detecting low populations and early-instar larvae. Even if they are found, the small size of juvenile larvae is at the lower limit of the extraction methods used. This was evidenced here where core sampling failed to detect early-instar larvae in areas where prior manual sampling had indicated a reasonable wireworm population.
To compound this drawback of the trial, the ground was far too wet for a potato crop in the field following treatments and so post-harvest assessment to quantify any wireworm presence or damage was impossible. The development of more sensitive detection methods, potentially drawing from techniques used in nematology or other areas of soil science, could significantly advance our understanding of treatment efficacy.
The unexpected results from flame-weeded plots warrant further investigation. The increased wireworm populations in these areas could either represent natural variation or indicate previously unknown ecological interactions, such as impacts on predator populations. Although our data is limited here, it does point towards the complexity of wireworm ecology and the need for a comprehensive understanding of soil ecosystem dynamics when implementing control measures.
At T C & N Taylor, Nick remains committed to organic growing techniques, and the implementation of any novel methods that can sustainably solve current pest problems. After the trial, Nick did grow buckwheat within the rotation but found it particularly susceptible to periods of cold weather, a possible barrier to wider UK adoption. TC & N Taylor’s main focus is to overwinter areas with mustard to combat subterranean invertebrate pests and continue to have something in the ground year-round. If the benefit of field-scale implementation was better studied under various conditions, then uptake would be an option moving forward. Planting potentially inconsistent crops and the costs incurred with incorporation of those, such as mustard, currently may not currently be economically viable for all growers.
Huge thanks to all those involved in the trial:

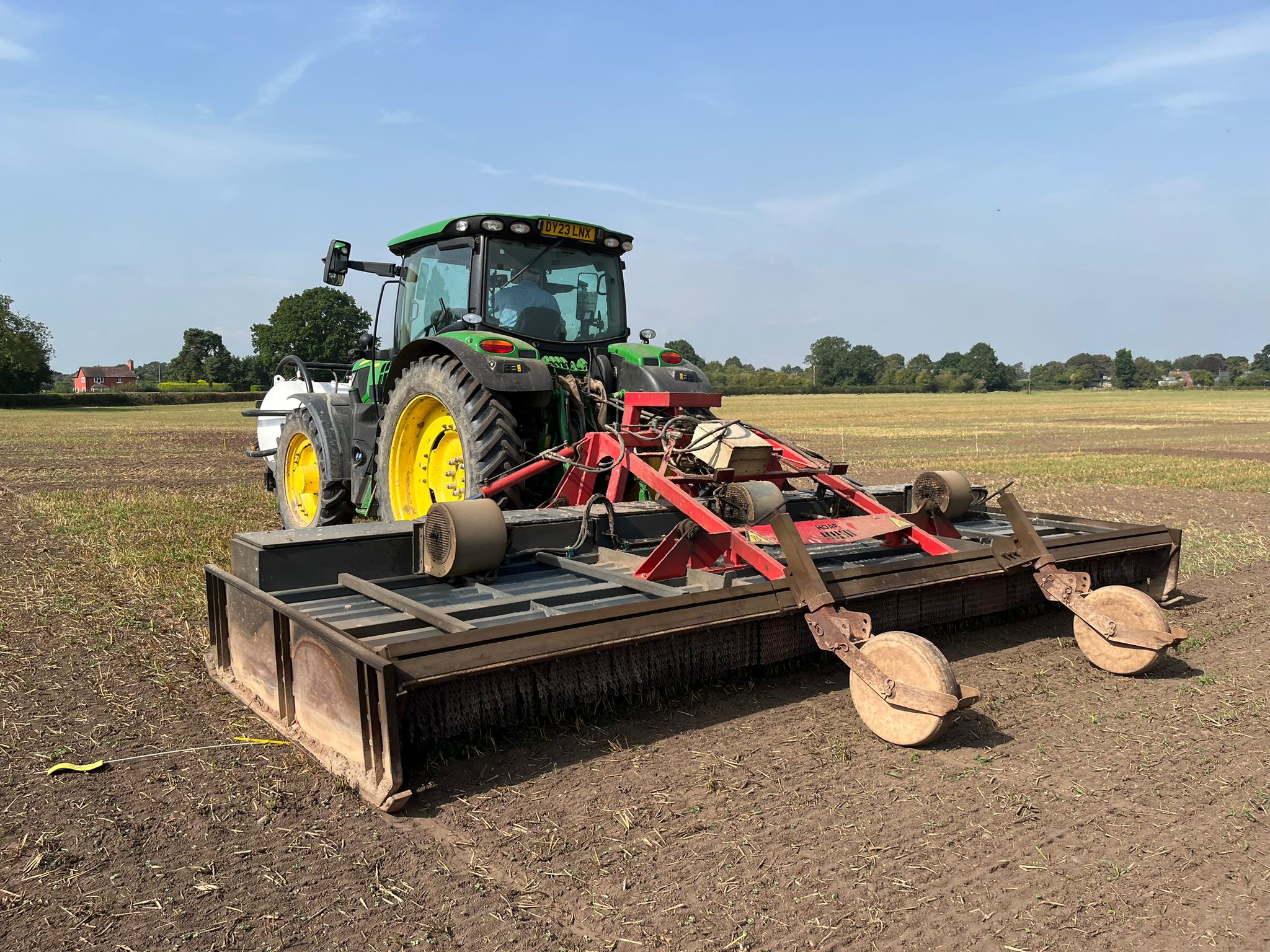

Weed burner
There are six trial plots at the farm. This is the weed burner in action on the 'bare stubble, uncultivated' trial plot. This plot is designed to have minimum soil disturbance.

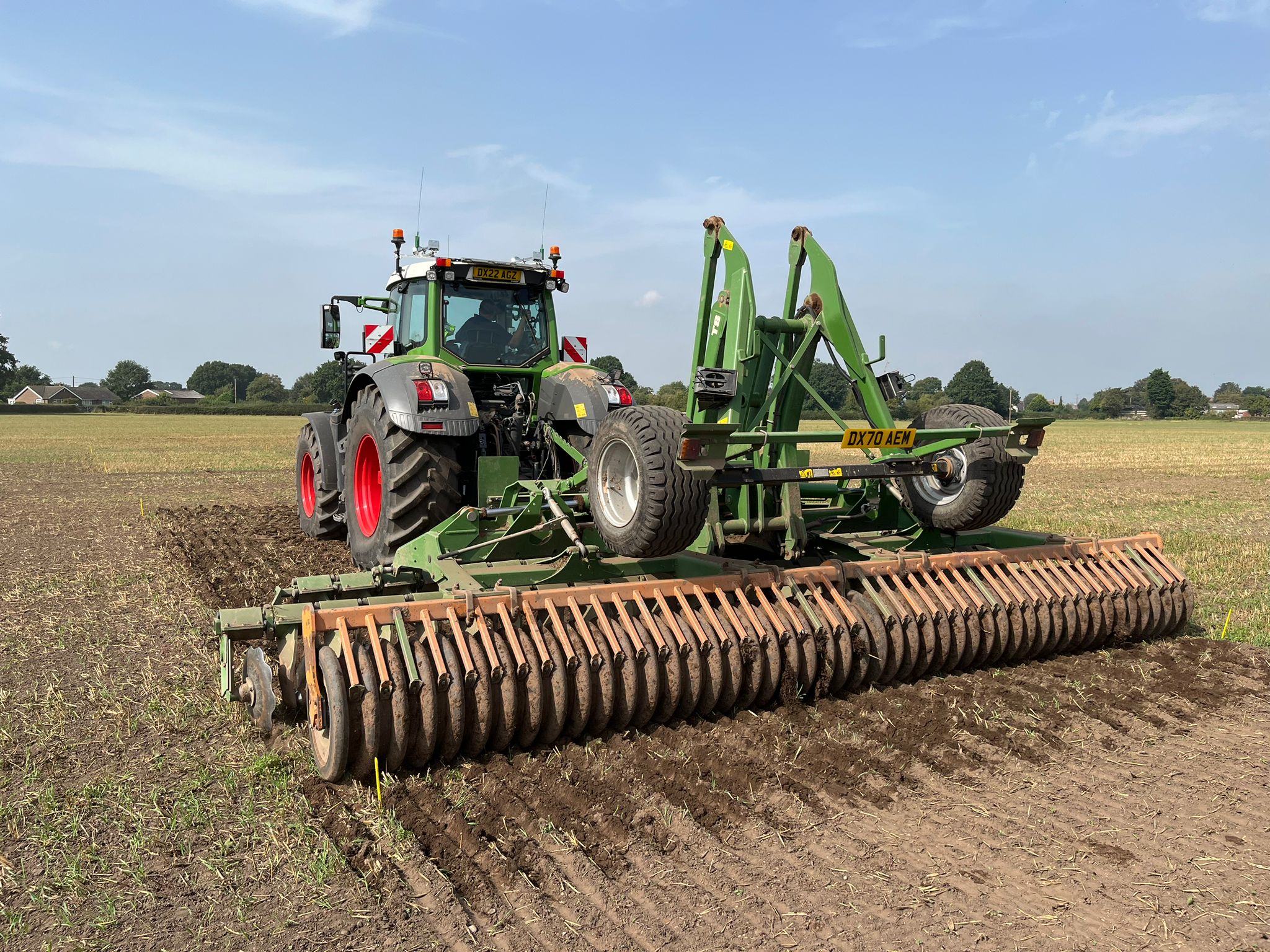

Discing the 'stubble - cultivated' plot - more soil disturbance at this plot

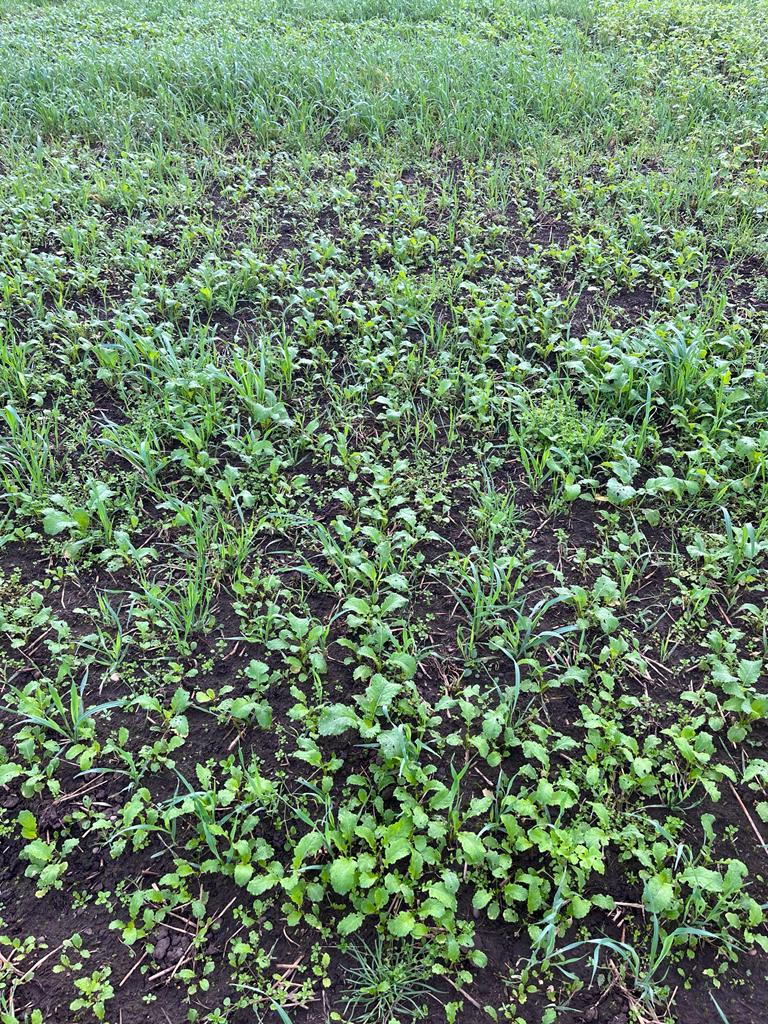

This is the mustard plot pre discing

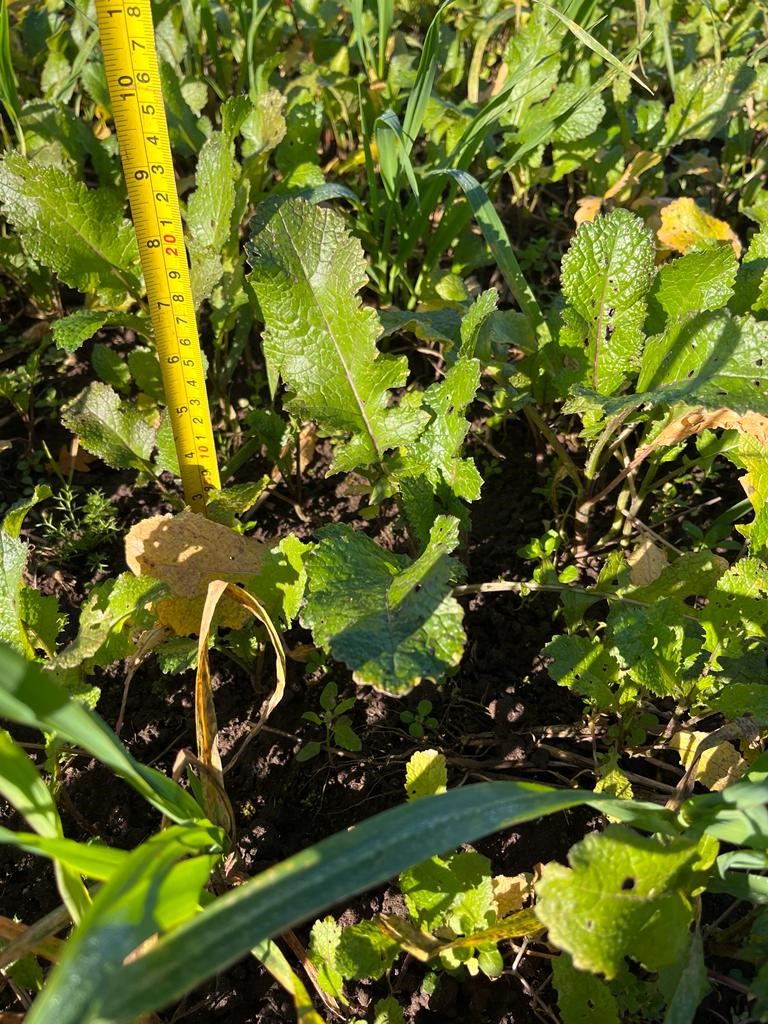

The mustard is 20cm tall
There is a discussion going on about when to incorporate the mustard. It needs to be done as soon as possible, but the mustard has not grown enough and rain over the weekend has meant the conditions are not right to incorporate. To have most impact as a biofumigant the mustard needs to be close to flowering and roughly 1m tall. It is hoped it will be incorporated next week.

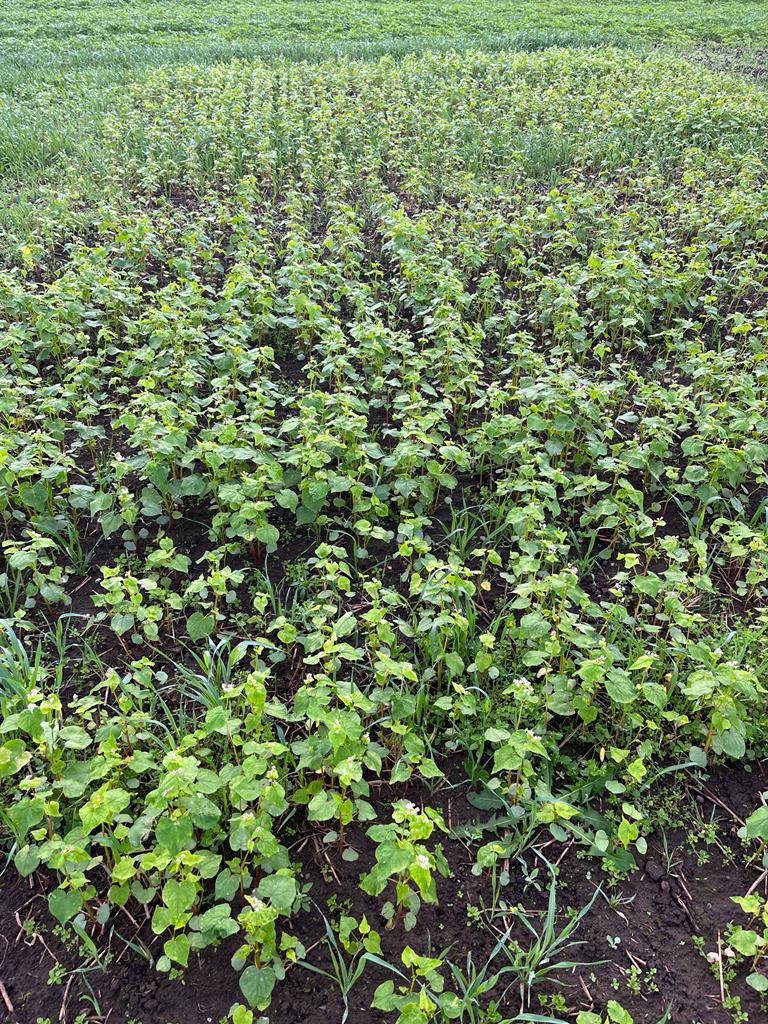

Buckwheat plot pre discing

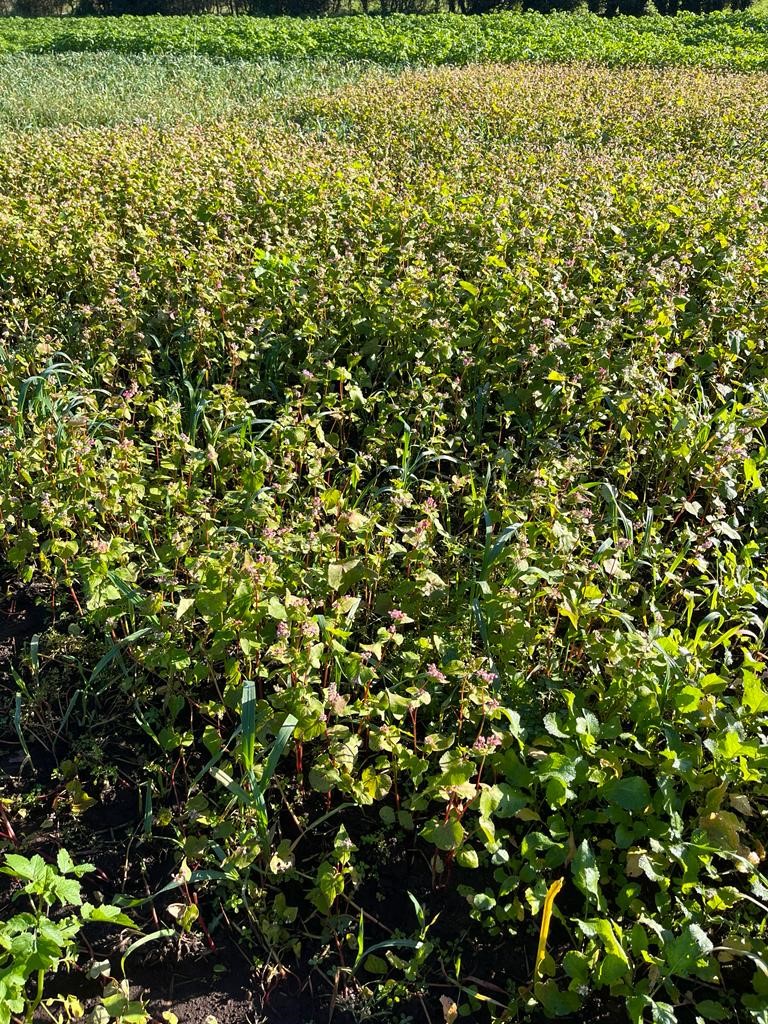

The buckwheat was 60cm tall just before incorporation

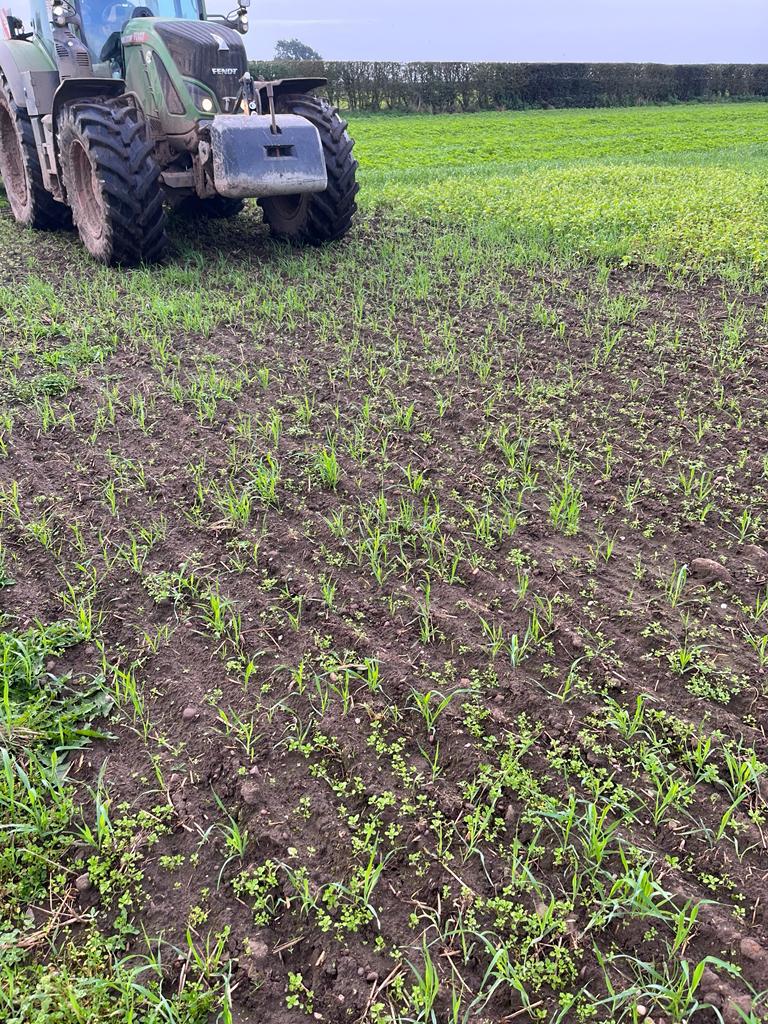

Plot pre discing

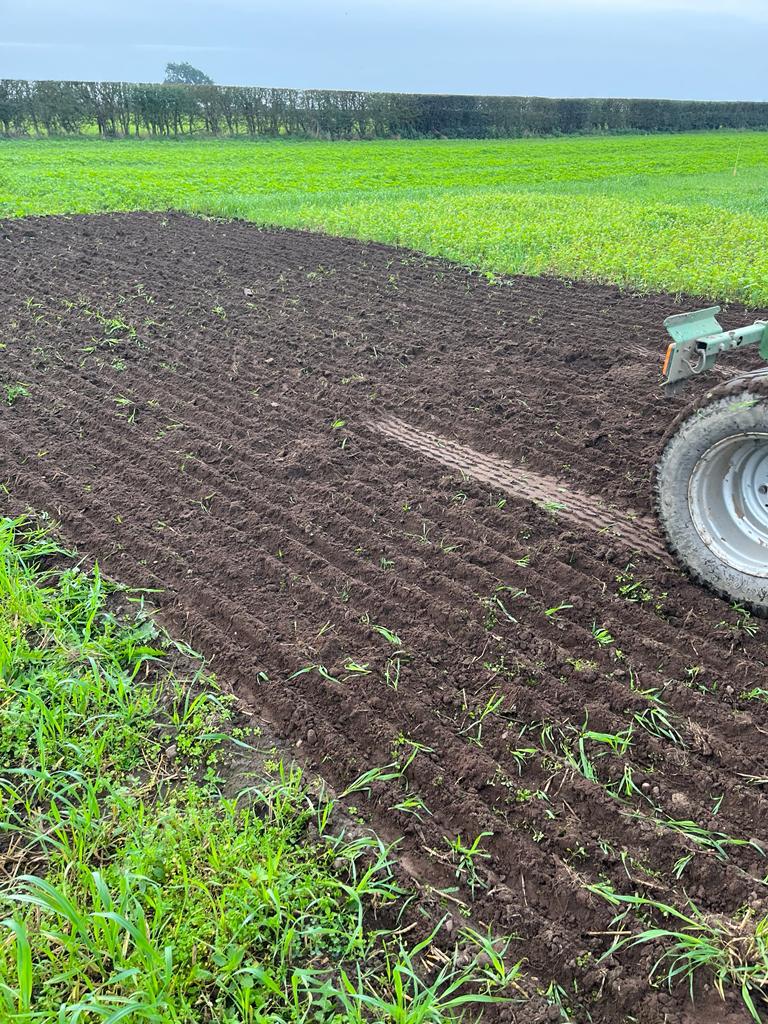

Plot after discing
We have published an article on steps to risk management and non-chemical control of wireworm. Read the full article here.
Autumn is an ideal time for assessing wireworm in soils because the larvae are very active in the autumn as temperatures are perfect for their survival.

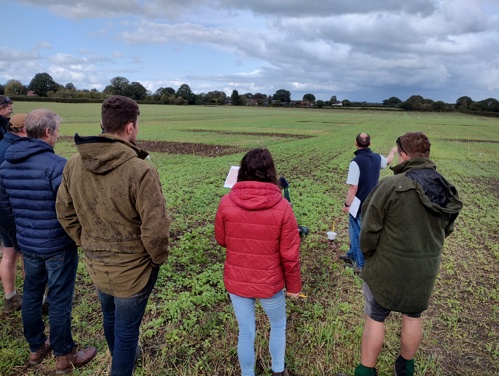

Last week Innovative Farmers ran a farmer workshop on wireworm at triallist Nick Taylor’s farm in Shropshire. The group discussed a wide range of issues and Martyn Cox at Blackthorn Arable led a session on risk management, the main points of which are outlined below.
1) Identify high-risk areas (e.g. grassy margins, permanent grass, nearby wet areas such as rivers and reservoirs, lots of cereals in rotation, weedy stubble)
2) Use bait trapping, pheromone trapping and soil cores to inform which control strategy to use. Just one wireworm in 20 soil cores of 10 cm in diameter (approximately 60,000 per hectare) can pose significant risk in the following crop.

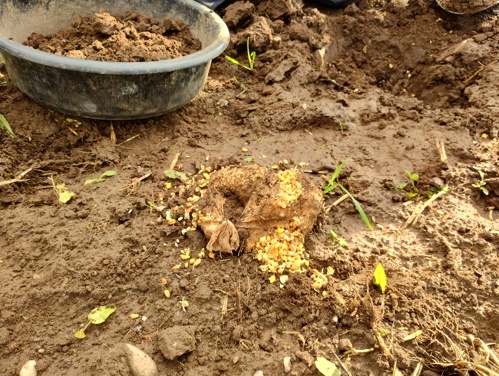

Autumn is an ideal time for assessing wireworm in soils; wireworm levels can decrease a little during the summer but larvae are very active in the autumn as temperatures are perfect for their survival. Make sure your bait traps use organic seed; if not, the insecticide on it will repel pests, so it won’t be a useful test.
3) Create a plant free situation after a cereal crop for a month
4) Decide whether it will be worth planting potatoes in the spring
5) Isolate the areas for early harvest. Late lifted potatoes are associate with higher risk.
6) Grow buckwheat and brown/hot mustards to reduce populations. It is very important to incorporate these into the soil to increase effectiveness. Hot mustard incorporation should ideally happen when soils are above 10 degrees so that the gases can move through the soil, so ideally before Christmas.
7) Certain dressings, such as certain essential oils combined with entomopathogenic (i.e. insect killing) fungi show promising results for repelling wireworm, however these options may be expensive
8) Damage severity differs between potato varieties – see CUPGRA 2022 work on varieties. Consider dual purpose varieties
Granular nematicides have not been found to be very effective.
When assessing wireworm, be aware that stiletto fly larvae can be mistaken for wireworm larvae but are actually predators of wireworm.
Stiletto fly larvae have no legs and thrash around when disturbed. Other natural enemies include ground beetles for the larvae, and birds for the adult (click beetle).
The potato trial plots are being prepared for drilling with mustard and buckwheat tomorrow...

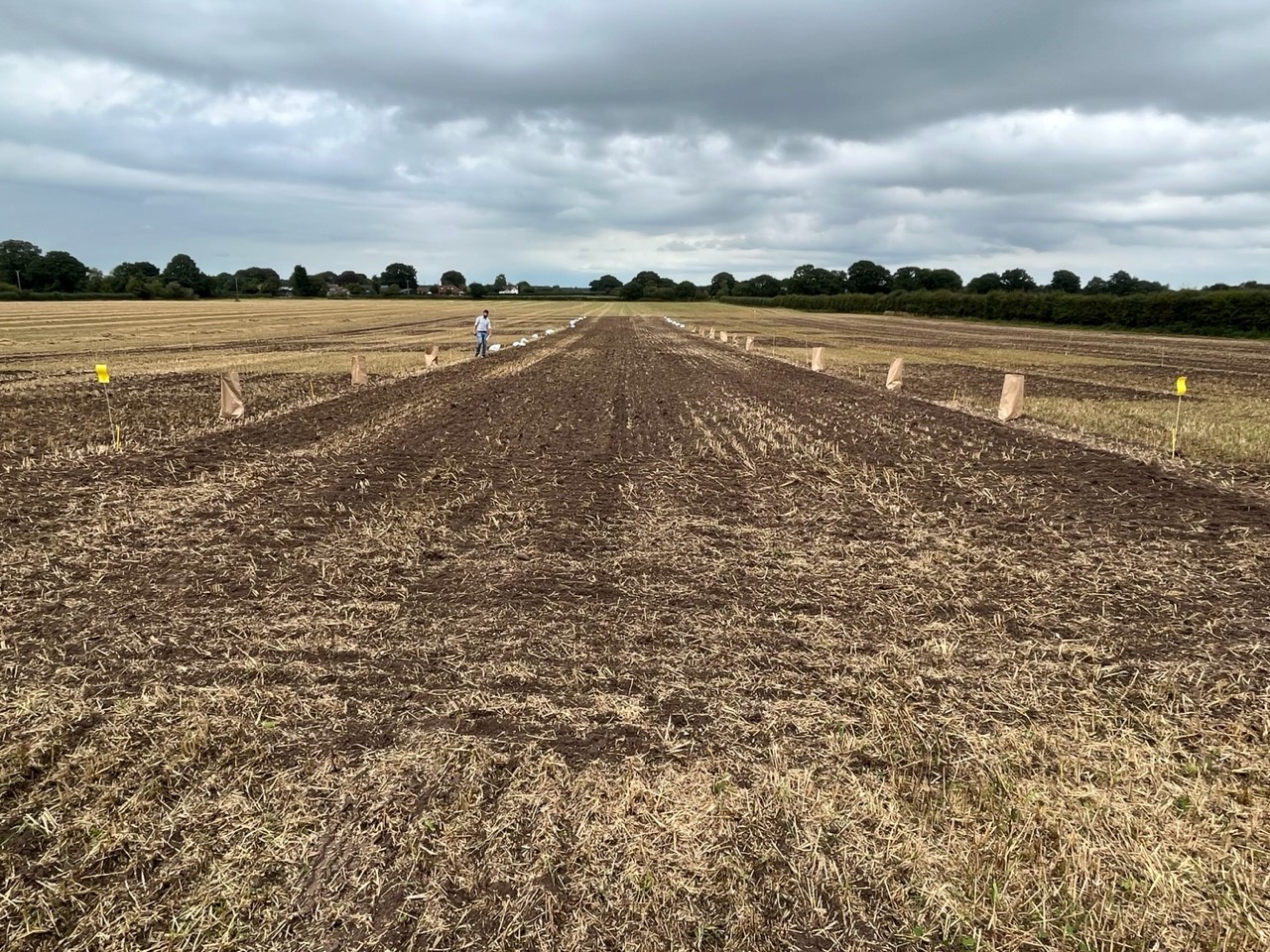

Preparing the trial plots in preparation for drilling - photo Richard Griffith

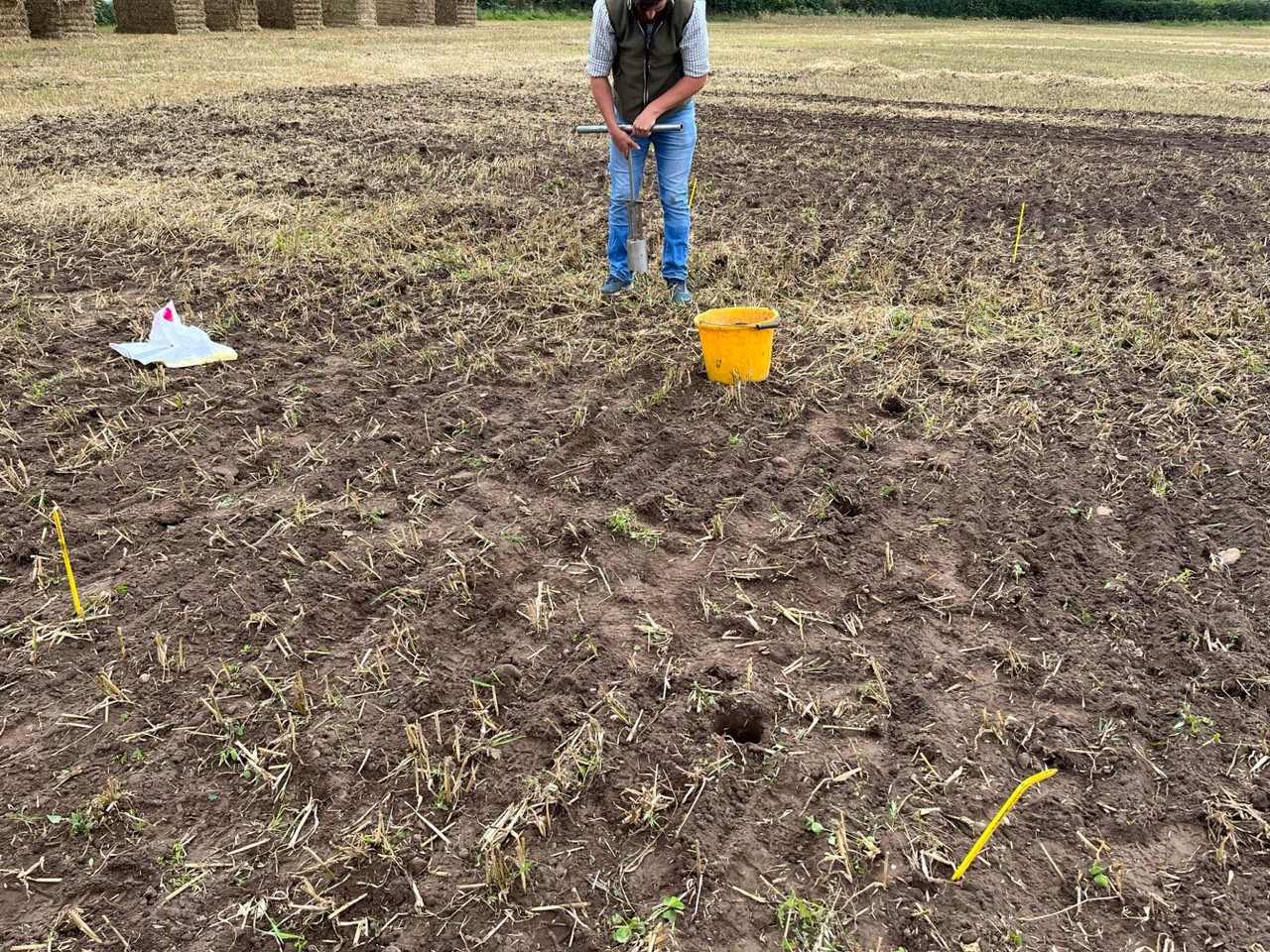

Soil sampling the trial plots in preparation for drilling - photo Richard Griffith
- Core sampling for wireworm carried out and sent to ADAS for analysis. 10 cores were taken per plot.
June 2023
Late July 2023
Late July
26th September 2023
September/October 2023
End October
End October 2023
Summer 2024
End October 2024
November 2024
